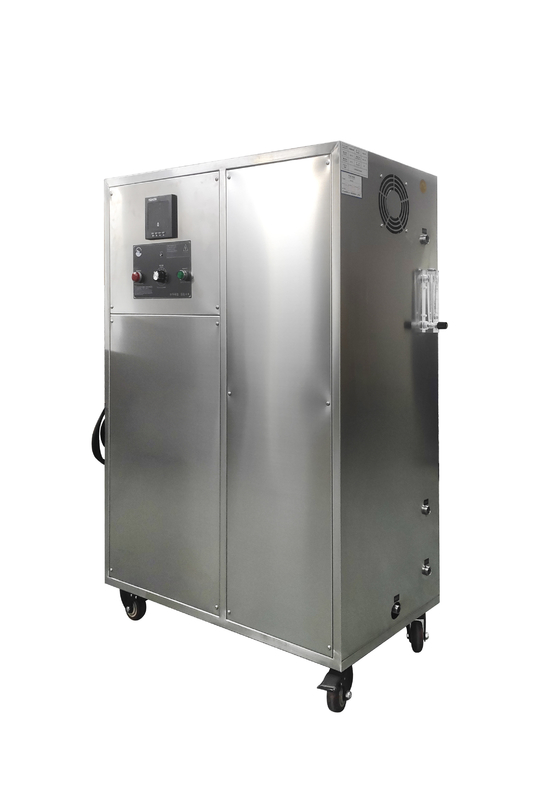

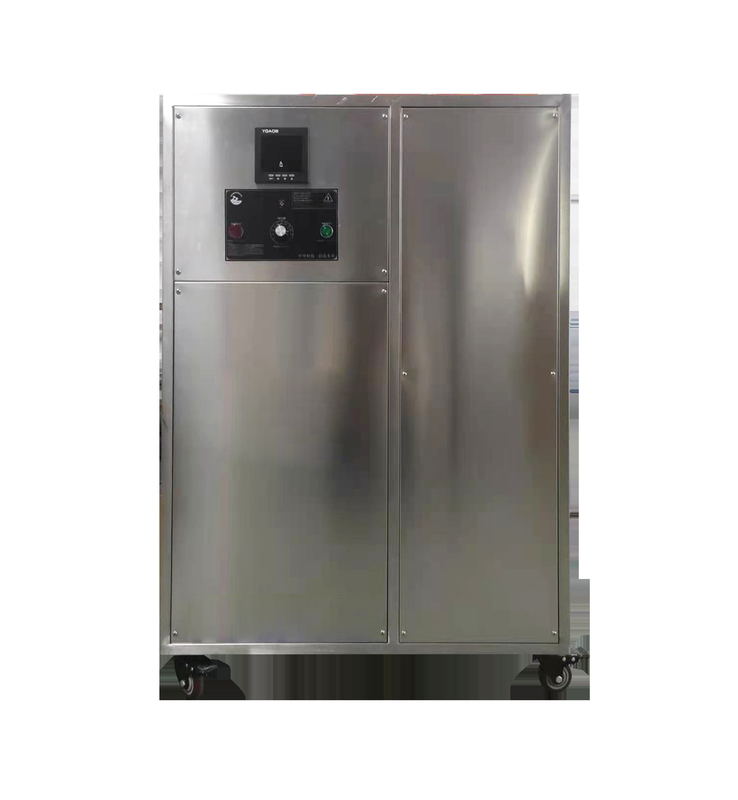

Commercial Ozone Generator For Water Treatment
Ozone Generator Functions
1. Complete machine PSA oxygen source, with built-in oxygen concentrator with high concentration of ozone and ultra-low rate of ozone decay.
2. High ozone concentration output: assemble air/water cooled quartz ozone tube for larger models.

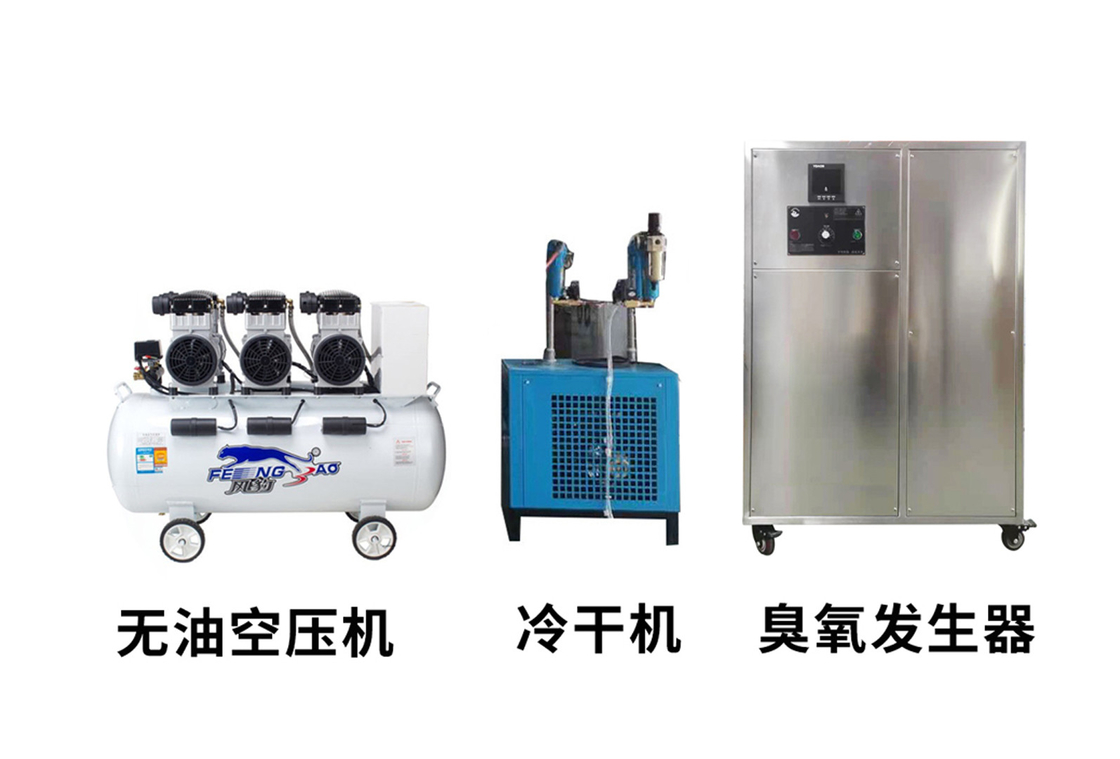

3. With refrigerant dryer for cooling air which can protect the oxygen & ozone unit for long service life in good working condition.
4. Inner temperature controller to prevent heat generating.
5. Inner muffler:silence operation.
6. Inner double ultra-filters and electric drain valves.
Specification
| Model NO. |
LD-5G |
LD-7G |
LD-10G |
LD-15G |
LD-20G |
LD-30G |
LD-40G |
| Ozone production(g/h) |
5 |
7 |
10 |
15 |
20 |
30 |
40 |
| Ozone concentration(mg/L) |
10-15mg/L |
15-20mg/L |
| Cooling type |
Air cooling |
| Power(W) |
80 |
100 |
200 |
250 |
320 |
450 |
500 |
| Power supply |
AC 220V/50HZ (60hz can be customized) |
|
|
| Length X Width X Height(mm) |
320*250*520 |
380*260*718 |
420*300*800 |
450*320*800 |
| Intake air Temp.(℃) |
≤20 |
|
| Air source dew point(℃) |
≤45 |
| Working environment |
Ambient Temp.≤45℃,RH ≤80%.It is strictly prohibited to use in inflammable and explosive places.
|
| Applicable space(m³) |
150-250 |
210-350 |
300-500 |
450-800 |
600-900 |
1000-1800 |
|
| |
|
Ozone generator is a device used to make ozone gas (O3). Ozone is easy to decompose and cannot be stored. It is necessary to make on-site use (special cases can be stored for short periods of time), so the ozone generator can be used in all places where ozone can be used. Ozone generator is widely used in drinking water, sewage, industrial oxidation, food processing and preservation, pharmaceutical synthesis and space sterilization. The ozone gas produced by the ozone generator can be directly utilized, and can be mixed by mixing the device and the liquid.
The product requirements
1. The component of product: ozone generator units, ozone power, pump, stainless steel shell, ammeter, Japan150 fan, accused of device.
2. Product features: intelligent titanium take off quartz tube structure ozone generator, long life, high concentration ozone design, whose power, volume is small, than similar products by air cooled, timing work.
3. Product function: thermal outage protection, thermal performance is good, temperature rise slowly.
